In this useful guide, compression adapter fittings are covered as fittings that join tubing and smaller pipe runs for reliable plumbing work. It is designed for homeowners, trade installers, and anyone searching for the right parts at Installation Parts Supply.

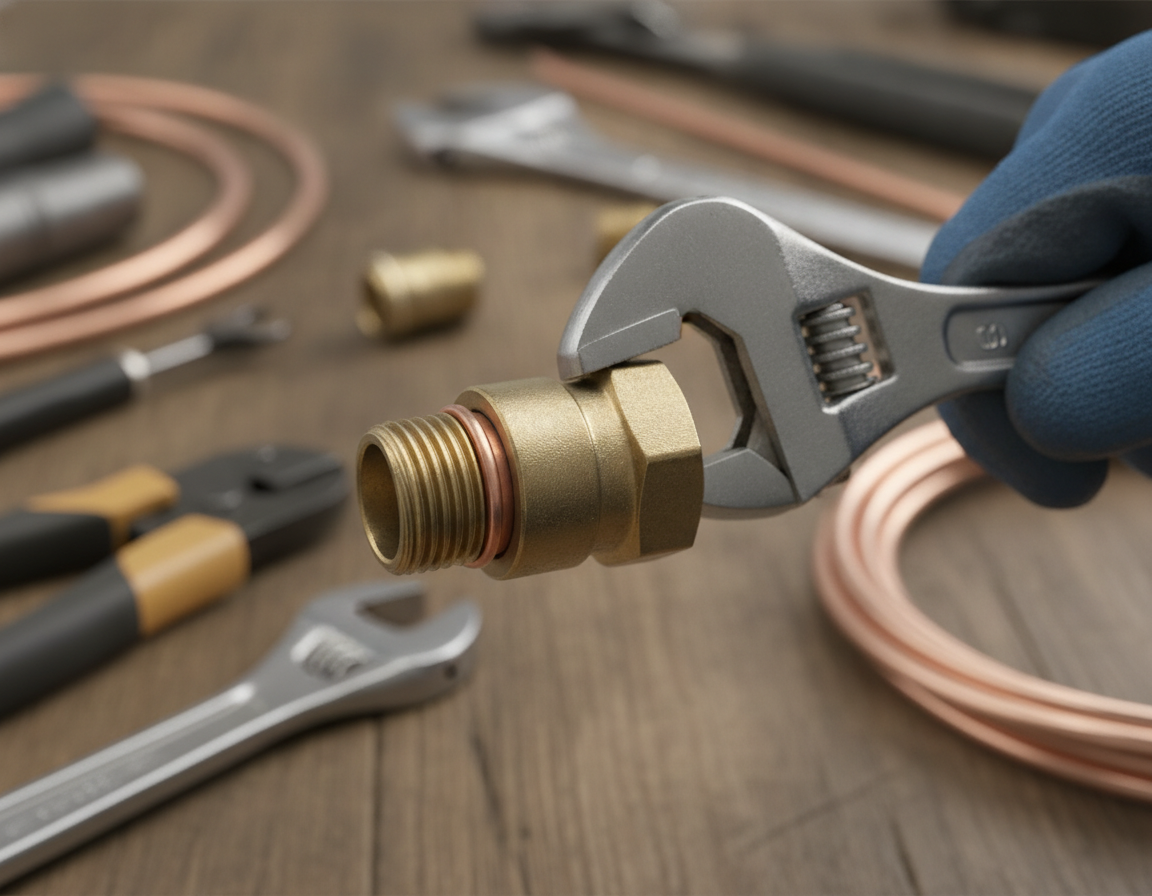

1 2 Female To 3 8 Male Adapter
Compression adapters seal by compressing a ferrule against the pipe and fitting body, forming a leak-tight seal. These fittings appear in household, light-commercial, and industrial plumbing applications because they are versatile.
The article sets out the main types, sizes, metal options, and best-practice installation steps. It also addresses troubleshooting and application use cases. Special attention is given to 3/8-to-1/2 conversions and to correctly matching thread types like compression thread and NPT. For durability, the guide compares copper choices.
Always follow the manufacturer’s tightening and turn-count specifications. For flexible tubing such as PEX, use tubing inserts whenever the manufacturer or application recommends them. Avoid mixing ferrules or fitting bodies from different brands to prevent leaks and galling.
Essential Takeaways
- A compression adapter seals when its ferrule is driven onto the tubing.
- Common sizes and materials for many plumbing tasks are supplied through Installation Parts Supply.
- Choose stainless steel according to working pressure, water chemistry, and the surrounding environment.
- Match thread types and sizes precisely when converting between 3/8 and 1/2 in. fittings.
- Adhere to manufacturer torque/turn specs and use inserts for soft tubing.
Understanding Compression Adapters And Compression Fittings
A compression adapter secures tubing by physically pressing a ferrule around the tube’s outside diameter. Unlike threaded fittings or push-fit fittings, these parts seal through ferrule compression rather than thread engagement or grab rings. Its seal is based on controlled metal deformation instead of thread sealant alone or internal retention clips.
The sections below describe each component and how the pieces interact.
Compression Adapter Basics And Key Differences
A compression adapter is a mechanical fitting that couples tubing or pipe without welding. As the compression nut is secured, it seats the ferrule into the tapered fitting body. That approach is different from threaded joints, which rely on matched threads and thread sealant. It is also not the same as push-fit fittings, which typically use elastomeric seals and retention clips for fast installation.
Key Parts: Nut, Ferrule Olive, And Fitting Body
The main pieces are the nut, the compression ferrule, and the fitting body. The nut applies the axial force needed for sealing. The ferrule, sometimes called an olive, reshapes to bite into the tubing. Inside the fitting body, a tapered bore seats the ferrule into its sealing position.
Certain designs add a rear ferrule that spreads seal stress and makes disassembly cleaner.
How Compression Adapters Create A Leak-Tight Seal
When the compression nut is turned down, it pushes the ferrule into the taper of the fitting body. This radial compression presses the ferrule against the tubing and creates a line-contact seal. When the ferrule is properly seated, the joint prevents leaks under normal pressure and temperature conditions.
Compression joints and compression fittings fit copper, brass, stainless steel, and many hard plastics. Before assembly, installers should check tubing compatibility and follow the maker’s torque or turn-count guidance.
| Fitting Component | Purpose | Main Benefit |
|---|---|---|
| Compression tightening nut | Axial force to drive ferrule | Controlled assembly and rework |
| Sealing ferrule | Forms the tube-gripping seal | Pressure-resistant seal at the tube |
| Compression fitting body | Tapered bore that seats ferrule | Reliable alignment and sealing surface |
| Second ferrule where used | Helps control front ferrule sealing force | Improved reassembly with less tube damage |
Common Compression Adapter Sizes And Type Conversions
Switching between 1/2-inch and 3/8-inch tubing is a frequent task. Choosing the correct reducer or adapter is critical. This supports a proper fit based on tubing OD, thread type, and gender. Choosing the correct part avoids leaks, extra fittings, and unnecessary labor.
Half inch to three eighths adaptor options
For supply-line jobs, parts such as the 1 2 To 3 8 Reducer and Half Inch To Three Eighths Adaptor are often required. They change a 1/2-inch feed to a 3/8-inch inlet. These parts are offered as single-piece reducers and two-piece compression adapters. This design preserves the tube seal. Always check if the listed sizes refer to tubing OD or nominal pipe size before making a purchase.
Adapters and reducers with differing genders
Fitting gender is critical when parts must mate correctly. When the mating component has a male thread, a 1/2 Female To 3/8 Male Adapter may be the correct choice. For the opposite gender, a 3/8 Female To 1/2 Male Adapter is used. Mixed systems may also require configurations such as 1/2 Male To 3/8 Female Adapter or 1/2 Male To 3/8 Male Adapter.
Compression-to-compression and compression-to-NPT connections
Compression-to-compression parts, such as 1/2 Compression To 3/8 Compression adapters, preserve a continuous compression seal. When connecting to threaded pipe systems, choose a 1/2 Compression To 3/8 NPT or a similar conversion fitting. When connecting to NPT, apply the correct thread sealant or PTFE tape to ensure a pressure-tight joint.
- Check part descriptions like 1 2 X 3 8 Compression Adapter or 3/8 X 1/2 Adapter for OD vs. nominal sizing.
- Confirm thread pitch and gender before cutting or buying replacement parts.
- Buy from reputable suppliers such as Mueller, Parker, or Watts to reduce mismatch risk.
Choosing Compatible Materials For Compression Adapters
Material choice has a major effect on how long the joint lasts. The fitting material should be selected according to tubing material, working pressure, and fluid type. This ensures a leak-free, corrosion-resistant, and galling-free connection. For applications involving corrosive or high-purity systems, a 3 8 Male To 1 2 Female Stainless Steel option is often the most reliable.
Brass, copper, and stainless steel are the primary materials for most applications. Brass adapters generally work well in potable-water and general plumbing systems. Copper fittings are often used with copper tubing and soldered pipe runs. Stainless steel, on the other hand, offers corrosion resistance and durability in high-pressure or chemical environments.
Compression fittings usually seal most consistently with rigid tubing such as copper, stainless steel, nylon, and PEEK. Soft tubing, such as PEX, can also be used with the support of tubing inserts. The insert supports the tube wall so the ferrule can seat correctly without collapsing the tubing.
PTFE tubing offers chemical resistance and flexibility, but it can creep under compression loads. To reduce that risk, choose fittings with redundant seals, internal O-rings, or back-up support features. When PTFE is used in compression joints, inspect the connection periodically for deformation or seepage.
The choice of ferrule is critical for seal reliability. Brass or stainless steel ferrules remain stable across broad temperature ranges. One-piece ferrules may be effective for softer tubing applications. Two-piece ferrule systems provide more control and can reduce galling by separating the front-ferrule and rear-ferrule functions.
Cone-profile asymmetrical ferrules can maintain consistent seals in precision assemblies. They are designed to lock their orientation. Symmetrical ferrules are more straightforward to assemble but may shift on hard plastics. Select ferrule geometry according to tube stiffness, pressure, temperature, and service requirements.
When selecting materials, consider the pressure, temperature, and media involved. For high-pressure, high-purity, or aggressive fluid service, choose stainless components with compatible ferrules. In routine domestic plumbing, brass compression adapters and copper compression fittings often combine affordability, availability, and performance.
Installation Best Practices And Common Mistakes
A reliable installation depends on clean, square-cut tubing and correctly matched components. Following best practices prevents leaks, callbacks, and unnecessary rework. A pre-assembly checklist can preserve time and materials.
Preparing Pipe Ends: Cutting, Deburring, And Cleaning
Ensure tubing cuts are square with a quality cutter. Uneven cuts lead to leaks. A deburring tool removes burrs, sharp edges, and metal fragments.
Clean the ends with a lint-free cloth to clear oil, dirt, and metal dust. When using soft tubing such as PEX, fit a rigid insert that matches the tubing ID. This allows the ferrule to seat properly. Cutting, deburring, and cleaning are necessary steps for a dependable compression seal.
Proper Tightening: Distance Turns Versus Torque And Avoiding Over-Tightening
Follow the manufacturer’s recommended turns after a finger-tight fit. Turn-count tightening often matches ferrule geometry more reliably than torque alone. Thread pitch is closely related to how much the ferrule compresses.
Do not over-tighten, because excessive force can flatten the ferrule, widen the contact area, and cause leaks. With stainless fittings, use moderate torque to reduce galling. Only use isopropyl alcohol as a temporary assembly aid when the manufacturer approves it.
Disassembly, Reassembly Limits, And When To Replace Ferrules
Compression fittings can allow limited disassembly. After the first installation, ferrules often lock onto the tubing and may not reseal well if reused. Whenever a fitting is removed, check the ferrule for deformation, scoring, or uneven seating.
Ferrules with poor seating should be replaced. If a fitting has been assembled and disassembled several times, replace the ferrule and consider the fitting body to ensure a leak-tight joint.
Common mistakes include mixing components from different manufacturers, neglecting to use inserts on soft tubing, mismatching compression and NPT threads, and ignoring cutting, deburring, and cleaning. Correcting these problems helps prevent call-backs and extends long-term system performance.
Choosing The Correct Adapter With Better Search Terms
Choosing the right adapter starts with precise search terms and a thorough part description review. Specific search phrases help find the right item and prevent returns. Common search terms include 3/8Th To 1/2 Adapter and 1 2 X 3 8 Compression Adapter for swift results.
Key details to look for in descriptions are gender, diameter, and thread type. Listings such as 1/2 Female To 3/8 Male Adapter or 1 2 To 3 8 Compression Adapter signal which side accepts tubing or pipe. Ensure the diameter refers to tubing OD or nominal pipe size.
Utilizing search variants is important when suppliers employ different naming conventions. Try 3/8 X 1/2 Adapter, 3 8 To 1 2 Compression Adapter, or 3/8Th To 1/2 Adapter to find compatible parts across various catalogs. Suppliers like Installation Parts Supply and Grainger often list the same item under multiple labels.
Adapter orientation should align with the mating parts. A male-to-female fitting such as 1 2 Male To 3 8 Female Adapter may be the right choice for connecting a rigid pipe run to a hose or supply line. Female-to-female adapters, on the other hand, join two male-threaded components.
Be cautious of hybrid fittings that combine different thread types. A 1/2 Compression To 3/8 NPT or a 1/2 Female Compression To 1/2 Male NPT combines compression and pipe thread on opposite ends. Always use thread sealant as directed by the manufacturer.
Choosing the right material is important for corrosion resistance, compatibility, and service life. Brass and stainless steel are popular options. Ensure compatibility with copper, PEX, or PTFE tubing to avoid galvanic corrosion when mixing metals.
In cases of uncertainty, verify part numbers and examine photos. Incorporating keywords like 3/8Th To 1/2 Adapter, 1 2 X 3 8 Compression Adapter, 1/2 Female To 3/8 Male Adapter, 1 2 To 3 8 Compression Adapter, 3 8 To 1 2 Compression Adapter, and 3/8 X 1/2 Adapter in searches can expedite the process of finding the correct match.
Troubleshooting Compression Adapter Leaks And Performance Problems
Leaks and pressure loss in compression connections require a quick, systematic approach. Start with a visual inspection, then use simple checks to narrow down the problem. Always prioritize safety when working with live systems.
Diagnose Common Causes
Begin by checking the ferrule for gaps, uneven marks, or poor seating. Check for damaged or cross-threaded nuts. Confirm that the tubing is cut straight and fully inserted into the fitting. Make sure the adapter type suits the system so thread mismatches are avoided.
Step-By-Step Leak Diagnostic Checks
- Look closely to confirm the ferrule is seated and the nut is properly engaged.
- Turn the nut slightly and feel for smooth engagement; roughness can point to thread damage.
- Measure the tubing diameter and inspect for roughness, flattening, or ovality that may stop a proper seal.
- Pressure-test the connection at low pressure before returning to service.
Practical Fixes
When a joint seems loose, retighten to the recommended specification. Do not over-tighten, because excess force can damage the ferrule.
For swaged, scored, or distorted ferrules, replace them along with the nut and fitting body if necessary. Do not mix ferrules and bodies from different manufacturers; mismatched taper or geometry can break the seal.
For soft tubing, install an internal insert sized to the tube so the wall is reinforced and sealing improves. In corrosive environments, switch to stainless steel fittings to extend service life.
Managing PTFE Cold-Flow And Creep
PTFE cold flow prevention requires specific strategies. Choose fittings with internal O-rings, redundant seals, or mechanically supported ferrule designs that limit creep.
Plan periodic inspections because cold flow may develop over time, even after the fitting was installed correctly. If PTFE shows deformation, replace the tubing and consider switching to a backup sealing method.
| Fault | Quick Check | Suggested Fix |
|---|---|---|
| Leak at compression nut | Nut may be loose; ferrule gap visible | Tighten to specification; replace ferrule if leaking continues |
| Intermittent leak under pressure | Check for oval tube or bad ferrule seat | Re-cut tubing, support tube wall, and fit a new ferrule |
| Gradual seepage | Soft tubing or PTFE creep | Apply PTFE creep controls; use reinforced tubing or O-ring backup seals |
| Cross-threaded or damaged threads | Rough engagement when tightening | Replace nut or fitting body; retighten to spec on new parts |
| Corrosion or material failure | Inspect for rust, pitting, or discoloration | Change to stainless fittings and compatible ferrules |
Application Tips And Common Use Cases
Around the home, compression adapters are useful for many plumbing tasks. They commonly join supply tubing to faucet, toilet, and fixture inlets. For example, a sink supply line adapter may be needed when faucet inlets and sink supply posts use different sizes.
Residential work commonly includes sink supply lines, faucet connections, toilet hookups, and appliance connections. When replacing a tank or adding a valve, a water heater compression adapter can be convenient. It is essential to choose parts that can handle household water pressure and match the ferrule material to the tubing.
Commercial and industrial systems usually have stricter requirements. High-pressure compression fittings may be used in process lines, bottled gas systems, and HVAC equipment. For demanding applications, stainless ferrules and two-piece ferrule designs can handle creep, corrosion, and vibration.
Instrumentation and high-purity systems need fittings that minimize contamination, out-gassing, and unwanted residue. Choose materials that are compatible with autoclave cycles and clean-room environments. For lab or medical equipment, confirm rated pressure, documentation, and traceability before choosing components.
Combining parts from different manufacturers can create sealing problems. Differences in ferrule taper, thread pitch, or ferrule length can stop proper sealing. It is best to purchase fittings and ferrules from the same vendor or confirm compatibility through Installation Parts Supply or the manufacturer’s data.
When buying parts, verify product pages for exact OD, thread pitch, material, and pressure rating. This step prevents surprises and reduces the need for field rework. Correct part selection is important for preventing leaks and extending service life in residential and commercial systems.
Final Thoughts
Compression adapters can adapt tubing when the correct part is selected and installed properly. Understanding the basic components—nut, ferrule, and body—is essential. That understanding helps you match size, gender, and thread type, including parts such as a 3/8 to 1/2 converter or 1/2 female to 3/8 male adapter.
Adapter material is another important selection factor. Brass and stainless steel are ideal for high-pressure and harsh chemical environments. Copper, on the other hand, is suitable for many residential applications.
Follow best-practice installation methods. Ensure square cuts and deburr the tubing. Use inserts for soft PEX or nylon tubing. Tighten by the recommended turns, avoiding excessive force.
When troubleshooting, verify ferrule seating and thread condition. Replace swaged ferrules after disassembly. Consider using redundant seals or alternative materials to prevent PTFE cold-flow.
When purchasing parts, rely on trusted suppliers and detailed specifications. Recommendations from Installation Parts Supply can ensure compatibility. They offer a wide range of adapters, reducers, and conversion fittings. The right parts, combined with correct installation, can reduce leaks and improve overall system reliability.
