An FTTH Cable Production line is a unified series of modules that turns optical fiber into finished drop and distribution products with reliable uniform quality.
Compact Fiber Unit
This introduction guides factory managers, production engineers, purchasing teams, and learners in the United States who review how industrial manufacturing equipment turns fragile fiber into robust cables for broadband service and communications networks.
At the heart of the line, the full-chain objective is simple: protect the fiber, preserve low optical loss, provide pull strength for installation, and deliver a product that withstands indoor and outdoor conditions.
Top-tier equipment delivers stable tension control, synchronized drives, defined process windows, and clear, auditable documentation for customer sign-off. This article helps match the right line configuration, materials, and testing plan to the desired cable design instead of ordering equipment first and backfilling requirements afterward.
You’ll map stages such as fiber handling and preparation, buffering and coating, organization/stranding, strength member integration, sheathing (outer-jacket extrusion), optional armor integration, and end-of-line testing and packaging.
Key takeaways include: A well-specified line cuts defects and ensures predictable delivery. Lock in process alignment before equipment purchase to avoid wasted time and expense.
How A Fiber Optic Cable Production Line Operates Today
Where last-mile drop and distribution requirements meet shop-floor execution.
Modern fiber manufacturing lines stitch delicate glass into finished products used in United States broadband buildouts. Rising last-mile drop and FTTH drop demand pushes high volumes, so manufacturers focus on repeatable handling methods and compliance with standards.
Core Modules & Material Flow
Material follows a clear sequence: pay-off → guiding/tensioning → secondary coating and coloring → organization / SZ stranding → strength member feed → jacketing (sheathing) → cooling and curing → take-up and testing.
Modules → Outcomes
Stable fiber handling lowers attenuation and preserves data and communication integrity. Consistent jacketing helps installation and connector preparation. Inline monitors catch loss events before reels ship.
- Indoor vs. outdoor: different jacket compounds and buffering.
- Armored variants add steel tape or wire for rodent and crush resistance.
- Drop designs favor tight-buffered fibers plus simpler connector prep.
Buyers should view lines as modular. Plants add armoring or skip steps to fit the product type. Output limits often come from curing and dimensional stability, not simply motor speed.
Define Your Product And Data Standards Before You Buy Equipment
Kick off with a clear product definition that defines the cable type, fiber/core count, service environment, and user scenarios. That early definition narrows the modules your line must include, from tight-buffer units to SZ stranding capability and jacket extrusion systems.
Select Standards And Measurable Targets
Pick fiber standards such as ITU-T G.652D or bend-insensitive G.657 A1/A2 based on bend requirements and routing constraints. Document optical loss budgets, tensile strength, crush and bend limits, and environmental durability before choosing a supplier.
- Map the exact product type and core/fiber count to define required modules and control needs.
- Set loss budgets and strength targets to steer material selection.
- Define required materials (buffer polymers, jacket compounds) and confirm supplier availability in the U.S.
Data Standards, Traceability, And Validation
Turn targets into factory-ready information: logged process variables, lot traceability, and customer-required acceptance test reports. Plan R&D pilot runs to validate settings and shorten scale-up time.

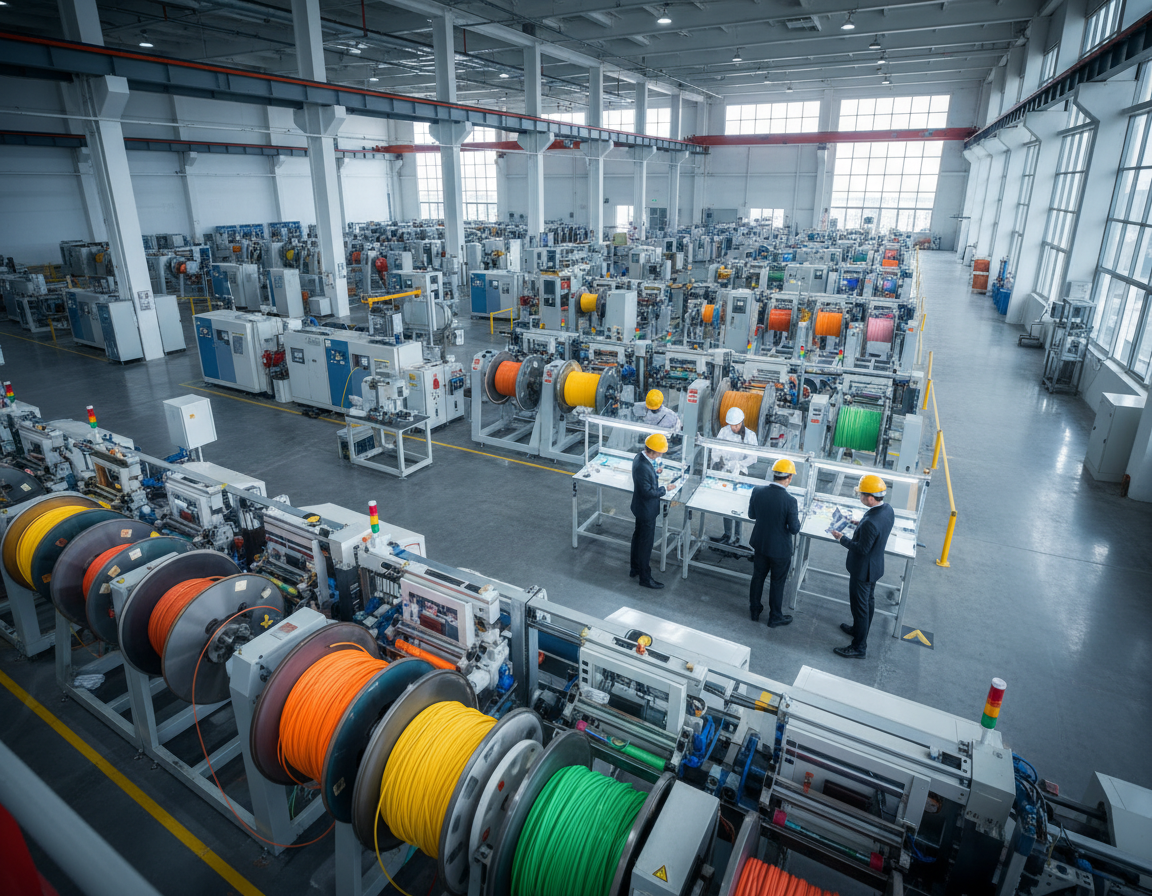

FTTH Cable Production Line
| Goal | Factory Impact | Typical Action |
|---|---|---|
| Minimal attenuation | Tension + alignment control | In-line attenuation checks |
| High strength | Strength member selection | Aramid/metal integration |
| Bend resistance | Selecting the fiber type | Adopt G.657 variants |
Build Quality Into The Optical Fiber: Core, Cladding & Coating Essentials
High-quality optical performance starts in the glass, where core purity and cladding design set the limits for signal loss.
Core + cladding form the central layer structure: an ultra-pure silica core carries the light while lower-index cladding keeps it confined. This geometry is the foundation for low-loss transmission and stable optic behavior in finished cables.
From Preform To Fiber Draw
Production starts with preform laydown and consolidation. Removing moisture in a high-temperature furnace reduces defects that raise attenuation.
The draw process pulls glass into a micron-scale strand. Geometry control here ties directly to stable attenuation and predictable transmission performance. One blank can produce roughly 5 km of fiber, so stability saves time and cost.
Primary Coating & Color Coding
Primary coating protects against scratches and handling damage; it is not the primary strength element. Color identification simplifies splicing, troubleshooting, and downstream fiber management.
- Preform consolidation: remove contaminants and moisture.
- Draw: control diameter and tension for low loss.
- Coating and color: protect and label each fiber.
| Layer Type | Role | Buyer check |
|---|---|---|
| Fiber core | Transmit light with minimal attenuation | Specify purity and loss specs |
| Cladding | Contain light, manage modal behavior | Confirm refractive index profile and geometry |
| Primary coating layer | Scratch protection and color ID | Verify adhesion and color coding |
FTTH Cable Production: Step-By-Step Line Setup From Buffering To Sheathing
A practical line setup walks each fiber from pay-off through buffering, stranding, and outer jacket to a finished reel.
Secondary coating and fiber coloring stations apply dual-layer UV-cured coatings (≈250 µm) and one-to-twelve channel color coding for identification and traceability. Consistent UV cure rates and stable web tension reduce mix-ups and rework.
Buffering And Materials
Tight buffering (600–900 µm) improves handling and simplifies connector work. Choosing Hytrel, PVC, or LSZH changes flexibility, temperature range, and flame/smoke behavior.
SZ Stranding, Organization
SZ stranding uses alternating lay to balance geometry and improve cable flexibility. Servo control (up to 24 fibers) keeps lay pitch consistent and lowers loss risk.
Strength Members And Jacketing
Aramid yarn is the standard tensile element; it provides pull strength without stressing fibers during installation.
Outer jacket extrusion with PVC, PE, or LSZH follows. Speeds often run 60–90 m/min and demand tight OD and concentricity control.
Armoring & Control Points
If crush or rodent resistance is needed, add steel tape or wire armor and control tension. Operators monitor tension, cure state, concentricity, OD, and cooling to maintain quality.
| Step | Key Control Point | Typical Spec |
|---|---|---|
| Secondary coating process | UV curing and tension | ≈250 µm, high curing consistency |
| Tight buffer stage | Material choice | 600–900 µm (Hytrel/PVC/LSZH) |
| Outer sheathing | OD/concentricity | 60–90 m/min |
Optimize Production Speed And Process Control With Modern Automation
As factories chase 24/7 output, synchronized controls and tension systems form the backbone of reliable manufacturing.
PLC, HMI, Closed-Loop Tension For Steady Operation
Modern lines use Siemens PLC/HMI platforms to synchronize modules, manage recipes, and log process data. Closed-loop tension control safeguards fiber during start/stop events and speed changes.
Fiber Secondary Coating Line
Match Speed To Curing And Dimensional Control
Line speed often caps where curing, cooling, or extrusion dimensional control cannot keep up. UV cure completeness, water-trough stability, and chiller capacity define the real limit.
Layout, Changeover, Procurement
Factory layout affects uptime: proper pay-off/take-up placement plus protected fiber paths reduce damage and shorten changeovers.
- Use quick-change tooling and documented setup steps to speed changeovers.
- When ordering equipment, specify industrial power (380 V AC ±10%) and typical load ≤55 kW.
- Demand remote diagnostics, spare parts availability, and fast service response from the equipment company.
| Focus Area | Operational Benefit | Typical Goal |
|---|---|---|
| System synchronization | Lower scrap, repeatable runs | Siemens PLC/HMI |
| Closed-loop tension | Protects fiber; keeps loss stable | High-accuracy closed-loop |
| Layout/changeover | Reduced downtime | Quick-change tooling, staging |
Testing And Quality Control To Reduce Loss And Improve Delivery Reliability
Strong testing and clear QC turn raw fiber into reliable, field-ready cable reels.
Begin with optical verification. Inline attenuation testing and return loss checks confirm signal performance before reels leave the line.
Optical Checks & Signal Integrity
Attenuation testing is the primary guardrail against performance complaints. Higher loss readings often indicate handling damage, microbends, or contamination.
Return loss checks focus on reflections that impact sensitive links and tight network margins.
Mechanical And Environmental Validation
- Tensile pull tests verify strength members and installation safety.
- Crush and bend tests simulate real-world installation stresses.
- Temperature cycling, moisture soak, and vibration testing de-risk outdoor and aerial deployments.
| Test | Purpose | Typical Result |
|---|---|---|
| Loss test | Measure attenuation per km | Pass/fail against specification |
| Mechanical | Confirm pull/crush/bend performance | Installation performance rating |
| Environmental tests | Simulate real field conditions | Durability confirmed |
Traceability connects raw material lots, inline data, and final test results to reel IDs. Correct reeling, labeling, and protective packaging preserve quality and speed customer acceptance and delivery.
Conclusion
A strong manufacturing plan connects product targets with the line modules and control limits needed for reliable output. Specify the FTTH product, service environment, and measurable specs before selecting equipment or finalizing layout.
Fiber fundamentals (core, cladding, coating) establish the optical baseline. Careful handling upstream preserves data integrity and keeps end-product quality within acceptance limits.
Configure buffering, organization/stranding, strength members, and jacket choices to match installation realities. Use automation and closed-loop controls to hold speed, cut scrap, and make delivery predictable in U.S. markets.
Discipline matters: implement comprehensive testing, reel-level traceability, and documented quality systems so customers can accept reels quickly. Next step: turn these points into a purchasing checklist (spec targets, utilities, layout, and acceptance tests) before requesting quotes or trials.
